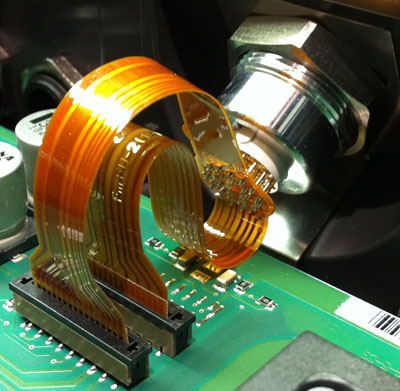

This is a neat way of dealing with multipin connectors which aren’t available in PCB mount versions or need to mount in a non standard way using a flexible PCB :
